Feasibility assessment of proton treatment for ventricular tachycardia—treatment planning study

Introduction

Ventricular tachycardia (VT) is a common cause of sudden cardiac death (1). Traditional cardiology has several methods to treat patients with the disease, including drug therapy, catheter ablation and high voltage shock treatment (2). Implantable cardioverter-defibrillators (ICDs) positively affected survival in patients at increased risk for ventricular arrhythmias (3). Nevertheless, ICDs do not prevent ventricular arrhythmias. In the current era, the use of catheter ablation for VT is well supported in patients with recurrent VT refractory to anti-arrhythmic drugs (AADs) and in patients for whom AADs are poorly tolerated (4). Catheter ablation is not curative for many patients (5). Common reasons for catheter ablation include inaccessible arrhythmogenic tissue and an inability to delivery adequate ablative energy transmurally across ventricular myocardium (6).

Many studies have investigated the application of radioablation as an alternative method to treat patients with recurrent VT. By delivering high dose photon beams in one fraction, the treatment effect is similar to ablation in mitigating the arrhythmic burden (7-10). Radioablation has been demonstrated as an effective treatment option for patients suffering from VT (7). The workflow for radioablation is similar to that of stereotactic body radiation therapy (SBRT), with a conventional treatment dose deliver within 3 to 10 fractions (11,12). Due to the feather of rapid dose fall off and the high dose per fraction treatment, caution must be paid to the uncertainty of dose delivery, including respiratory and cardiac motions. Furthermore, the procedure from CT simulation to dosimetry verification, requires enhanced accuracy compared to that of conventional photon therapy.

The unique feature of the proton beam treatment lies in the rapid distal dose fall-off behind the Bragg peak, while proton treatment has been widely applied worldwide for the treatment of various cancers. Over the past 5 years approximately 3,000 patients have received proton treatment at Linkou Chang Gung Memorial Hospital Proton Center, and the further applications for benign diseases are currently being developed (13,14). Based on the experience, the feasibility of a single fraction proton irradiation to treat VT disease requires assessment (15). The present report aims to compare the effectiveness of the photon beam and proton beams in different subtracts where VT commonly occurs. We present the following article in accordance with the MDAR reporting checklist (available at https://tro.amegroups.com/article/view/10.21037/tro-21-43/rc).

Methods

Patient selection

Two patients with VT and an ICD were retrospective included in this study, who having had at least 3 episodes of ICD-treated VT within the preceding 3 months, and having undergone at least 1 catheter ablation procedure. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The retrospective study has been approved by Chang Gung Medical Foundation Institutional Review Board (No. 202200668B0) and individual consent for this retrospective analysis was waived.

Computed tomography (CT) simulation

The patient with three sets of CT were retrospective selected, including (I) a free breath three dimensional (3D) CT for treatment planning, (II) a free-breath CT with contrast for delineation of cardiac structure, (III) a four-dimensional (4D) CT for motion evaluation. The scanning range was defined as the target region in the superior-inferior direction for 10 cm to cover the non-coplanar treatment plan dose calculation.

The CT images were imported into the Eclipse (Varian Medical, Palo Alto, CA, USA) treatment planning software version 13.7 for target delineation and development of treatment plan.

Target delineation

For the photon treatment plan, the gross tumor volume (GTV), internal target volume (ITV) and planning target volume (PTV) were defined. The GTV was defined by the contouring of five common recurrent VT regions by cardiology physician, including apical anterior (AA), apical inferior (AI), basal septal (BS), inferior basal (IB), lateral basal (LB) (16-20). The five regions are shown in Figure 1, and were separated into 2 groups for organ at risk (OAR) dose analysis: AA and AI in Group 1; BS, IB and LB in Group 2, due the locations at the center or surface of the heart. The ITV were defined as the GTV expanded margins, including by respiratory and cardiac motions, with the combined effect being assessed by all the phases of the 4D-CT, overlaid with the reference CT. The PTV was defined as the ITV with a 5 mm expansion to compensate for setup and motion uncertainty. No clinical target volume (CTV) expansion was used for this study.

Figure 1 Five common VT recurrent regions contoured by cardiologic physician, showing on contrast image. (A) Apical anterior; (B) apical inferior; (C) inferior basal; (D) lateral basal; (E) basal septal. VT, ventricular tachycardia.

For the proton treatment plan, the definition of GTVs and ITVs were defined in the same manner as the photon treatment plan, but included independent longitudinal and lateral margins for the proton planning target volume (PPTV). The longitudinal margin considered range uncertainty (3.5% of range + 3 mm), while the lateral margin considered setup uncertainty, internal target motion and penumbra according treatment to site and field size and energy.

Nearby OAR including the lungs, esophagus, stomach and heart were contoured by a radiation oncologist on 3D CT images for dose evaluation.

Treatment planning

All treatment planning was conducted using a single fraction of 25 Gy was prescribed to the treatment target. For photon treatment planning, Varian EDGE (Varian Medical, Palo Alto, CA, USA) with 6X flattering filter free (FFF) were used in the study (21), as FFF reduces the treatment time by applying an beam intensity, while removal of the flattening filter reduces out-of-field dose. The dose rate was set as 1,400 MU/min. Four to five coplanar and non-coplanar partial arcs were used for volumetric modulated arc therapy (VMAT) plan with gantry angle of 30° to 330° and couch angles of 330° to 30° respectively. Progressive resolution optimizer (PRO) was used for photon treatment planning optimization, and analytical anisotropic algorithm (AAA) was used for dose calculating, while dose grids were set as 1 mm.

For the proton treatment planning, wobbling (WB) and single field optimization (SFO) of pencil beam scanning (PBS) treatment techniques both with five fields were used. The WB irradiates a uniform dose under a restricted block radius by rotating a pencil beam with x and y magnets and passing through a scatter, and spread-out Bragg peak (SOBP) are generated by ridge filter. PBS can perform intensity modulated dose distribution by varying the energy, position of each pencil beam. The beam angle selection was to minimize the beam overlapping region, while gantry angles of the non-coplanar were used to achieve a high gradient dose distribution. PCS_RF_13721 for wobbling technique dose calculation and non-linear proton optimizer (NUPO)_PB_13721 were used for SFO technique, and PCS_PB_13721 was used for dose calculation

Plan evaluation

The conformal index (CI), homogeneity index (HI) and R50 were used to evaluate the target dose (22-24). HI is the index to that can evaluate the homogeneity in PTV, and CI is to evaluate the region covered by the full prescribed dose between the different treatment plans. Dose in OAR were evaluated by using dose-volume histogram (DVH) and maximum dose.

HI=D5%D95%[1]

where D_5% and D_95% are dose received by the 5% and 95% of the PTV respectively.

CI=VPTVrefVPTV×VPTVrefVPTV[2]

where V_PTV is the volume of PTV, V_PTVref is the volume of PTV receiving prescribe dose, an ideal plan ensuring perfect dose coverage would be 1.

R50, R30 are the ratio of the 50% and 30% of prescription isodose volume to the volume of PTV.

Others OAR including the heart (V_5Gy to V_25Gy, mean dose), lungs, esophagus, spinal cord, and left anterior descending artery (LAD) were used to evaluate photon and proton wobbling and pencil beam treatment plans. Note that V₅ is defined as the percentage of the total normal heart that is irradiated with a dose of ≥5 Gy, V_10Gy to V_25Gy is defined in the same way.

Statistical analyses

The nonparametric test Mann Whitney U test was used to compare dosimetric parameters between Group 1 and Group 2, and WB and PBS. Spearman correlation coefficient was used to identify relations between the volume of CTV and the mean heart dose in the different treatment technique. Statistical analysis was performed using SPSS 24. All P values less than 0.05 were considered to be significant.

Results

Figure 1 shows the contouring of five GTV regions contoured by a cardiologist. The volume of five different subtract GTVs of all patients were 1.4 to 12 cm³, while CTVs were 6.33 to 53.67 cm³. Table 1 is the CI and HI under the same dose coverage. The CI of the photon VMAT plan and proton (WB and PBS) plans were 0.830±0.105, 0.946±0.076, respectively, with a P value <0.05. The HI of the photon and proton were 1.069±0.025, 1.048±0.018, respectively, with a P value <0.05. Additionally, Table 2 compares the CI and HI of the WB and PBS treatment planning, with P>0.05 with no difference in both results.

To evaluate the R50, R30 and dose to OAR, the five subtracts were divided into 2 groups: Group 1 and Group 2. As the locations of the heart and volume were different, the separation into 2 groups was performed in order to obtain more accurate results.

Tables 3,4 shows the R50 and R30 in Group 1 and Group 2 to compare the photon plan and proton treatment plans. In Group 1, the R50 and R30 were 4.19±0.58 and 7.32±1.08, respectively, in the photon plans, and 4.34±1.03 and 6.7±1.78, respectively in the proton plan, both with both P value >0.05. In Group 2, the R50 shows no difference between photon and proton plans. However, for R30, it shows 9.98±1.65 in the photon plans and 7.12±1.02 in the proton plans with P value <0.0001. Tables 5,6 compare the R50 and R30 in the WB and PBS plana, both the R50 and R30 of the PBS plan in Group 2 exhibit a difference, while there is no difference in Group 1.

Tables 7,8 show doses to normal heart received in the photon and proton plans in Group 1 and Group 2. The results reveal the volume of the heart receiving the same dose was larger in the photon treatment plan than in the proton plan in most evaluations. But there was a significant difference between the photon and proton plans only in the volume upon receiving 5 and 10 Gy in both Group 1 and Group 2, and no difference in the volume upon receiving 15 to 25 Gy between the two groups. However, in the comparison of the WB and PBS plans of Group 1 and Group 2, as shown in Tables 9,10, the results revealed no difference.

Tables 11,12 show different D_max or mean dose of nearby OAR in Group 1 and Group 2. In Group 1, the results are significantly higher in the VMAT photon planning than in the proton treatment planning. Yet in Group 2, the mean dose of the left lung show no difference between the photon and proton plans, and D_max of esophagus shows different, but photon plans were lower than proton plans. The comparison of the WB and PBS in Group 1 and Group 2 are shown in Tables 13,14 with P value >0.05 in most organs.

Discussion

In a study by Weidlich et al., four different treatment units (CyberKnife, Varian Truebeam, Varian EDGE, Elekta Infinity) were used to compare doses in PTV and OAR for VT patients (25), demonstrating that each was able to deliver a conformal, homogeneous dose to PTV. In addition, the study reported that a conventional linear accelerator was superior in its ability to spare distant critical structures, while CyberKnife showed more effectiveness at sparing nearby critical structures by creating larger dose gradients at the periphery of the target volume. The results are similar to those demonstrated in our study, wherein the HI of the photon and proton are showed no statistical difference in minor at 1.069 and 1.048 respectively, with both being an effective treatment plan. Thus, each treatment plan is able to deliver a conformal, homogeneous dose to the target area.

A study by Knutson et al. in which R50 was used to evaluate dose gradient, reported that the smaller R50 is correlated to a higher dose gradient is (26). A higher dose gradient in the treatment plan is expected to cause lower dose to affect nearby OAR. However, our study revealed no difference in R50 between the photon and proton plans in Group 1 and Group 2, including that the small target causes the dose to decrease rapidly in the photon and proton treatment plans. Generally, the advantage of the proton will be evidenced in lower dose regions, so R30 was also included in our assessment. R30 showed a significant difference only in Group 2. In the photon VMAT planning, as the target region was in center of the heart, beam directions were nearly 200 to 300 degrees in coplanar or non-coplanar, causing a low dose (30% isodose level) region larger than the proton with only 5 beam directions. As shown in Tables 5,6, as compared to the WB technique, PBS has the advantage of reducing the nearby OAR dose by inverse optimization in Group 2, where the location was in the middle of the heart.

Heart toxicity from breast radiotherapy has been a concerning issue for decades. According to a study by Piroth et al. (27), the mean heart dose for breast radiotherapy is recommended as <2.5 Gy, while decreasing the mean heart dose may result in a reduced risk of death caused by radiation-induced heart disease (RIHD) (28). In our study, only the results of the proton treatment plan in Group 1were within the recommend dose, and the results of the proton plan were statistically lower than those of the photon treatment plan. Meanwhile in Group 2, both results exceeded the recommend dose; despite this, the results of the proton plan were still lower than those of photon plan. The study by Piroth et al. further recommends a mean dose of LAD lower than10 Gy. While both Group 1 and Group 2 in our study had a mean dose of LAD lower than 10 Gy, the proton plan remained lower than the photon plan. However, as patients with VT constituted the primary population of the study, it must be noted that the overall survival rate of VT for 1-year and 2-year periods is very low. Thus, in case of VT, the risk of RIHD may not be as concerning as it is in other radiotherapy target.

Figure 2 shows the relationship of volume of CTV and mean heart dose (Gy) in three types of treatment plans. The coefficients of the correlation are 0.61 (P=0.008), 0.474 (P=0.037), 0.471 (P=0.038), revealing a medium correlation in all types of treatment plan and mean heart dose. This indicates that if the mean heart dose is still an index to evaluate harm to OAR, the volume of CTV may be an estimator.

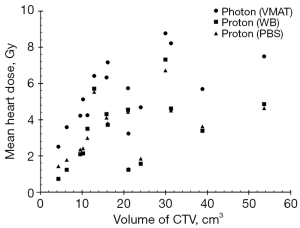

Figure 2 Correlation of clinical target volume and mean heart dose (Gy) in photon plan, proton wobbling and proton pencil beam plan. VMAT, volumetric modulated arc therapy; WB, wobbling; PBS, pencil beam scanning; CTV, clinical target volume.

Figure 3 shows the dose volume of heart in the photon plan and proton plans. The results illustrate that the curve of the proton plan is lower than that of the photon plan in all situation except for V_20Gy in Group 2. Further analysis reveals that in the volume of the heart receiving a dose greater than 5 Gy and greater than 25 Gy, only V_5Gy and V_10Gy show a significant difference (Tables 7,9). Although V_20Gy is lower in the photon plan than in the proton plan, there is no significant statistical difference. A study by Bradley et al. (29) revealed that a volume of the heart receiving ≥5 or ≥30 Gy was associated with worse overall survival. The proton treatment plan demonstrates the superior overall survival when the heart receives ≥5 Gy and 10 Gy.

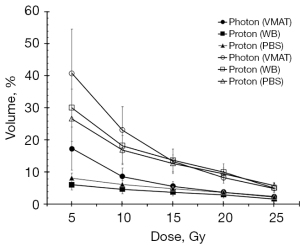

Figure 3 Dose-volume histogram of heart in photon plan, proton wobbling and proton pencil beam plan. Solid dots are Group 1, hollow dots are Group 2. VMAT, volumetric modulated arc therapy; WB, wobbling; PBS, pencil beam scanning.

Among the OAR evaluated in this study, the location of the spinal cord, esophagus, and right and left lung are far from PTV in Group 1. Although all have significant differences (P<0.05) between the photon and proton plans, but the values in photon and proton plan are thus not clinically meaningful.

In Group 2, the maximum dose to the esophagus showed no difference between the photon and proton plans, the reason is the location nearby the PTV, and the maximum dose was restricted to under 19 Gy, causing a similar maximum dose in two treatment plans. The proton dose to the left lung and right lung were lower than photon dose, but without significant difference. Of the OAR list, only the spinal cord showed significant difference for the patient with VT occurring at BS, IB, LB. For the location of the three subtracts, the beam angle selection will be more separate than for AA or AI, potentially causing the dose to penetrate the spinal cord given the higher dose than in Group 1, thus, the advantage of the proton is clear.

Conclusions

In this study, the statistical analysis revealed that CI and HI in all treatment plans showed little difference, are sufficient in clinical practice. Although most results indicated that the proton beam will yield less harm to nearby OAR, the advantages of the proton were not significant in some organs in Group 2, in which the VT subtract was located at the center of the heart. Several issues require consideration in future studies, including accurate patient localization, motion margin evaluation of respiration and heartbeat, dose measurement, and verification of small field irradiation. Nevertheless, this treatment planning study indicated that using the proton beam to treat VT is a viable therapeutic option.
