Use of a motion phantom to verify dose accuracy in different delivery techniques for lung tumors in stereotactic body radiation therapy

Introduction

According to the Ministry of Health and Welfare of Taiwan, cancer has been the leading cause of death (among the top 10) for many years. In particular, lung cancer was the leading cause of cancer-related deaths (among the top 10) in 2016. Nearly 9,000 patients in Taiwan die of lung cancer each year, and lung cancer is the leading cause of cancer-related death among both men and women. According to the stereotactic body radiation therapy (SBRT) guidelines from the American Society for Radiation Oncology (ASTRO), SBRT is one of the standard treatments for inoperable early-stage non-small cell lung cancer (NSCLC) with a lesion diameter of 5 cm or below (1-3).

Goitein et al. stated that a tumor must be delineated from the surrounding normal tissues or the dose delivered to the peripheral target region may be insufficient. Moreover, tumor motion and treatment techniques may result in a nonuniform dose to the target, highlighting the importance of estimating displacement uncertainties (4).

Guckenberger et al. investigated the effect of respiratory motion on the SBRT treatment site in lung cancer patients. With pretreatment cone-beam computed tomography (CBCT), the authors found that the average tumor displacement was 2.8±1.6 mm and recommended a margin of 5 mm for the internal target volume (ITV) (5).

Rao et al. compared volumetric modulated arc therapy (VMAT) plans with helical tomotherapy (HT) and step‐and‐shoot intensity-modulated radiation therapy (IMRT) plans. The results showed that both VMAT and HT plans can provide more uniform target doses and improve normal tissue sparing compared with fixed field IMRT plans. Both VMAT and HT plans can be delivered accurately based on their QA standards. Overall, VMAT was able to provide an approximately 40% reduction in the treatment time while maintaining the plan quality comparable to that of HT (6).

Ahmed et al. compared NSCLC patients with stage I to IV disease using three-dimensional computed tomography (3DCT) and four-dimensional computed tomography (4DCT) simulation scans under free breathing, and found that the anatomical position of the planning treatment volume (PTV) depends on the tumor and lymph node movement during the respiratory cycle. Therefore, all lung cancer patients who receive curative radiotherapy are recommended to undergo 4DCT simulation to ensure accurate coverage of the target volume (7).

It is difficult to quantify the actual dose delivered to a tumor due to tumor displacement associated with respiratory motion. Therefore, in this study, we used a motion phantom system to investigate the effect of respiration-induced lung tumor displacement on dose delivery in the following three different techniques: IMRT-SBRT, VMAT-SBRT, and HT-SBRT. 4DCT was used to define the treatment area while considering respiratory motion. An ionization chamber and radiochromic films were used to measure the point dose at the tumor center and the dose profiles, respectively, which were then compared with the calculated doses to verify the accuracy of the dose delivered to the lung tumor.

We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/tro-21-14).

Methods

The study flowchart is shown in Figure 1.

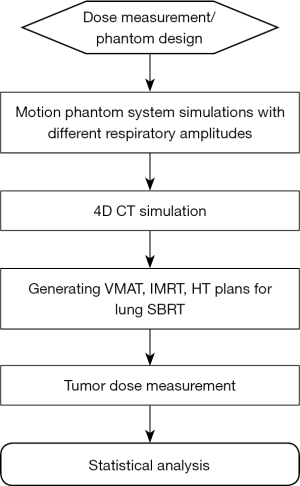

Figure 1 Flowchart of the research design.

Motion phantom system

In this study, we used a motion phantom system to verify the calculated dose. This system included a CIRS model 008A dynamic thorax phantom (CIRS Inc., VA, USA), CIRS respiratory motion control, and a homemade dose-measuring phantom (see Figure 2 for the design process). The CIRS respiratory motion control program was used to select the respiratory amplitude and cycle time, and the homemade dose measuring phantom was driven by different breathing patterns to simulate lung tumor displacement associated with different respiratory amplitudes (Figure 3).

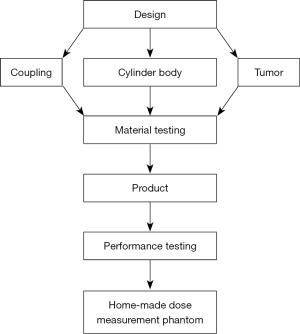

Figure 2 Flowchart of the homemade phantom for the dose measurement.

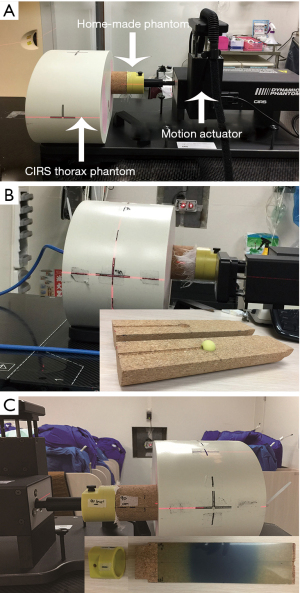

Figure 3 This system included a CIRS respiratory motion control, and a homemade dose-measuring phantom. (A) Motion phantom system. (B) Point dose measurement at the center of the tumor phantom. (C) Dose profile measurement setup established to measure the dose profiles in the x-y and y-z planes.

CIRS thorax phantom and respiratory motion control

The CIRS thorax phantom represents the shape, proportion, and composition of an average human thorax. The phantom is composed of tissue and lung equivalent materials with simplified geometries and contains an anthropomorphic spine with cortex and trabecular bones. The CIRS respiratory motion controller is used to control translational and rotational motions to simulate complex 3D motions. The motion actuator, which is connected to the phantom and the motion controller, can be driven by the controller (Figure 3A). In this study, we used the Cos4 waveform to simulate respiratory motion in the inferior-superior (IS), anterior-posterior (AP) and left/right (LR) directions. Fukumitsu et al. showed that the average respiratory rate was 10 to 18 breaths/min, with approximately 3 to 6 seconds per respiratory cycle and a respiratory amplitude of 5 to 25 mm (8). This study was designed to simulate regular respiratory motion during SBRT, with a respiratory rate of 13 breaths/min, a respiratory cycle of 4.5 seconds, and respiratory amplitudes of 10, 14, and 18 mm.

Homemade dose measurement phantom

The homemade dose-measuring phantom was a column with a height of 270 mm and a bottom diameter of 62 mm and was a lung tissue substitute. The phantom included a coupler used to connect the phantom to the motion actuator and a spherical tumor insert. The phantom consisted of two customized semicylinders, with the front end connected to the coupler and a notch 95 mm from the rear end for the spherical tumor insert (Figure 4). Different types of spherical tumors can be inserted into the phantom body as needed for point dose or dose profile measurements. In this study, a cork with a physical density of 0.27 g/cm³ was used as the material for the phantom body based on the results reported by Chang et al. as its physical properties (physical density, electron density, and effective atomic number) are very similar to those of lung tissue (9). The material of the coupler was acrylonitrile butadiene styrene (ABS) resin with a density of approximately 1.04 to 1.06 g/cm³.

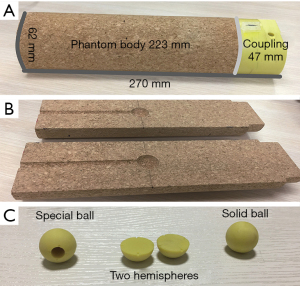

Figure 4 The homemade dose-measuring phantom. (A) Self-made cylindrical phantom for dose measurements. (B) Cylindrical phantom body composed of two special semicylindrical cylinders. (C) Three spherical tumor inserts.

Given the use of different types of dosimeters, three spherical tumor inserts with diameter of 20 mm were designed with distinct functions (Figure 4). (A) A tumor insert with a spherical cavity to accommodate the ionization chamber for the point dose measurements. (B) A tumor insert consisting of two semispherical parts and radiochromic film was placed between the two semispherical parts to measure the dose profile. (C) A solid tumor insert was used to simulate the tumor size and shape. ABS resin with a physical density of 1.02 g/cm³ was selected as the material for the tumor inserts based on the density of human tissue recommended by Woodard et al. (10).

4DCT

A Philips Brilliance Big Bore CT scanner (Philips Medical Systems, Cleveland, OH, USA) was used for the 4DCT scans. The bellows device for the breathing monitor was attached to the motion actuator of the CIRS thorax phantom. A 4DCT scan was performed according to the clinical protocol for SBRT (pitch: 0.09, rotation time: 0.5 seconds, 120 kV, 350 mAs, respiratory rate: 13 breaths/min, axial thickness: 3 mm, helical mode) (11). The 4DCT data were reconstructed into ten phases (0% to 90%). Maximum intensity projection CT images (CT_MIP) and average CT images (CT_AVG) were also reconstructed from the 4DCT data.

SBRT plans

The internal target volume (ITV) was generated based on the tumor displacement data from 4DCT. The PTV was defined as the ITV with an isotropic expansion of a 5-mm margin. A total dose of 6,000 cGy in 5 fractions was prescribed to the PTV. All plans in this study aimed to cover at least 95% of the PTV by 95% of the prescribed dose (PD); the minimum dose to the PTV should be higher than 93% of the PD, and the maximum dose (D_max) should be less than 120% of the PD.

IMRT-SBRT, VMAT-SBRT, and HT-SBRT plans were generated for the target with different respiratory amplitudes. The HT-SBRT plans were generated in Hi-ART treatment planning system (TPS) using the convolution/superposition algorithm with 1.95 mm grid size (TomoTherapy Inc., Version 5.1.2, Madison, WI, USA). The VMAT-SBRT and IMRT-SBRT plans with 6-MV photon energy were generated for an Elekta Synergy linear accelerator (linac) (Elekta AB, Stockholm, Sweden) in Pinnacle TPS using the adaptive convolution algorithm with 2 mm grid size (Philips, Version 9.8.0, Fitchburg, WI, USA).

The VMAT-SBRT and IMRT-SBRT plans with 6-MV photon energy were generated for an Elekta Synergy linear accelerator (linac) (Elekta AB, Stockholm, Sweden) by using a Pinnacle TPS (Philips, Version 9.8.0, Fitchburg, WI, USA). For the IMRT-SBRT plans, 12 beams with the step-and-shoot technique were used for optimization, including ten coplanar beams (gantry angle =195°, 230°, 300°, 335°, 10°, 40°, 70°, 100°, 130°, and 160°) and two noncoplanar beams (gantry angles of 20° and 340° with couch angle of 70°). For the VMAT-SBRT plans, four coplanar partial arcs of 335° to 180° in clockwise and counterclockwise directions were used. The VMAT-SBRT plans were optimized with a gantry spacing of 4°, a constraint leaf motion of 0.33 cm/deg, and a maximum variable dose rate of 600 MU/min. For the HT-SBRT plans, a field width of 2.5 cm and a pitch of 0.217 were used for optimization.

Plan evaluation

The conformity index (CI) and homogeneity index (HI) of the IMRT-SBRT, VMAT-SBRT, and HT-SBRT plans were calculated at different respiratory amplitudes.

The CI is defined as follows (12):

CI=PIV/PTV[1]

where PIV is the prescription isodose volume, and PTV is the planning target volume. Based on the definition, a CI value closer to 1 corresponds to better conformity. According to the Radiation Therapy Oncology Group (RTOG) recommendation, the normal range of the CI is 1.0 to 2.0, indicating no deviation from the RTOG protocol. A CI value >2.0 or <1.0 indicates mild deviations, and a CI value >2.5 or <0.9 indicates major deviations (12).

The HI is defined as follows (12):

HI=Dmax⁡/PD[2]

where D_max is the maximum dose to the PTV, and PD is the prescribed dose. A HI value closer to 1 corresponds to better homogeneity in the target. According to the RTOG recommendation, the HI should not exceed 2.0. An HI >2.0 indicates mild deviations, and an HI >2.5 indicates major deviations (12). The beam-on time (BOT) of IMRT- and VMAT-SBRT were measured by a timer excluding the time for couch rotation between fields. As for the BOT of HT-SBRT, we obtained from the TPS directly.

Dose measurement

In this study, an ionization chamber (PTW 31010, 0.125cc Semiflex Chamber) and EBT3 films were used to measure the point dose at the tumor center and the dose profiles, respectively. The EBT3 films were cut to 20.5 cm × 6.2 cm and placed in the homemade phantom to measure the dose profiles along the X, Y, and Z axes. Previous studies reported that the dose measurement uncertainties in SRS and SBRT using EBT3 films were approximately 1.5% (13,14).

Point dose measurement at the tumor center

To minimize variations in the experimental results due to temperature, atmospheric pressure, and device status, prior to each measurement, we used a solid water phantom and an ionization chamber (PTW-31010) to obtain the dose conversion factor of the photon beam (cGy/nC) based on our clinical condition of 1 cGy/MU in the solid water phantom. For the point dose measurement, the ionization chamber was placed in the homemade dose-measuring phantom (Figure 3B) to measure the point dose of IMRT, VMAT, and HT at three different respiratory amplitudes. The measurement was repeated three times, and the mean values were calculated and compared with the doses calculated in the treatment plans.

Dose profile measurement

We established the EBT3 film calibration curve (optical density vs. dose) prior to the dose profile measurements. All EBT3 films used for measurements were from the same lot (Lot#: 06141702). The EBT3 film was sandwiched between the two semispherical inserts positioned inside the cork semicylinders of the homemade phantom. Then, the phantom connected to the coupler was rotated for the dose profile measurements in the x-y and y-z planes for nine treatment plans as follows: three respiratory amplitudes, 18 mm,14 mm, and 10 mm, and three techniques, IMRT-SBRT, VMAT-SBRT, and HT-SBRT (Figure 3C). An EPSON 10000 XL Scanner (48-bit RGB) was used to scan the irradiated EBT3 films, which were then imported into Film QA software (Ashland ISP Inc., Covington, KY, USA) along with the TPS-calculated doses for the analysis.

Statistical analysis

A Mann-Whitney test was used for the statistical analysis of the different SBRT techniques. A P value ≤0.05 was considered statistically significant.

Results

CI, HI and BOT of different SBRT plans

The plan evaluation parameters of the different techniques are summarized in Table 1. The dose distributions of different techniques on axial and coronal images at the maximum respiratory amplitude (18 mm) are shown in Figure 5.

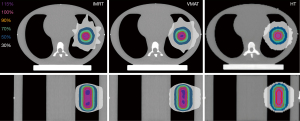

Figure 5 Dose distributions of IMRT-, VMAT, and HT-SBRT plans on axial (top) and coronal (bottom) images at the maximum respiratory amplitude (18 mm). The green line indicates PTV, and the red line indicates ITV. IMRT, intensity-modulated radiation therapy; VMAT, volumetric modulated arc therapy; HT-SBRT, helical tomotherapy stereotactic body radiation therapy; PTV, planning treatment volume; ITV, internal target volume.

For HT-SBRT plans, the mean CI at different respiratory amplitudes was 1.22±0.10, which was in the normal range (1.0–2.0). For the IMRT-SBRT and VMAT-SBRT plans, the mean CI values at different respiratory amplitudes were both 0.95±0.02, indicating mild deviation from the RTOG protocol (>2.0 or <1.0). The HT-SBRT plans showed a statistically significantly better mean CI than the IMRT-SBRT and VMAT-SBRT plans, but there was no statistically significant difference between the IMRT-SBRT and VMAT-SBRT plans. For the HT-SBRT plans, there was a trend toward a better CI with decreasing respiratory amplitude; however, the IMRT-SBRT and VMAT-SBRT plans showed the opposite trend. For HI, the mean HI of the HT-SBRT plans with different respiratory amplitudes was 1.14±0.01, which was closer to 1 than those of the IMRT-SBRT (1.20±0.01) and VMAT-SBRT plans (1.20±0.01) (Table 1). The HT-SBRT plans showed a statistically significantly lower mean HI than the IMRT-SBRT and VMAT-SBRT plans, but there was no statistically significant difference between the IMRT-SBRT and VMAT-SBRT plans. For the HT-SBRT plans, there was also a trend toward a better HI with decreasing respiratory amplitude. The VMAT-SBRT plans showed statistically significantly shorter BOT (average, 333.0±9.8 sec) than the other plans. There was no significant difference in the BOT between the IMRT-SBRT (average, 662.3±137.2 sec) and HT-SBRT plans (average, 694.8±51.8 sec).

Point dose measurement at the tumor center

The results showed that for all three techniques at different respiratory amplitudes, the point dose differences at the tumor center between the calculated and measured doses were all within ±3% (Table 2): IMRT-SBRT =1.7%±0.7%, VMAT-SBRT =1.1%±1.4%, and HT-SBRT =−0.7%±0.7%. The IMRT-SBRT and VMAT-SBRT plans showed that the calculated doses were lower than the measured doses at different respiratory amplitudes, except for VMAT-SBRT at the 10-mm respiratory amplitude. However, for the HT-SBRT plans at different respiratory amplitudes, the calculated doses were all higher than the measured doses. The results showed that for the IMRT-SBRT and VMAT-SBRT plans at different respiratory amplitudes, the calculated and measured doses were higher than the PD (1,200 cGy per fraction) as follows: the mean calculated doses were 17.6% and 16.8% higher than the PD for the IMRT-SBRT and VMAT-SBRT plans, respectively; the mean measured doses were both 18.9% higher than the PD. For the HT-SBRT plans, the mean measured and calculated point dose were respectively 4.8% and 4.1% higher than the PD.

Dose profile measurement

The measured dose profile results are summarized in Table 3. The point dose measured by ionization chamber was used as a dose correction factor to plot the dose profile on the X, Y, and Z axes at different amplitudes of the three techniques. The minimum coverages of the X-, Y-, and Z-axes of the 100% dose curves of IMRT-SBRT, VMAT-SBRT, and HT-SBRT were 31.78 mm, 48.89 mm, and 31.21 mm, respectively, all of which were larger than the spherical tumor (20 mm in diameter). The minimum coverage values are shown in bold in font Table 3. For the three techniques at different respiratory amplitudes, the measured dose profiles along the y-axis were wider than those along the other two axes. Moreover, for IMRT-SBRT and VMAT-SBRT, the width of the dose profile along the y-axis increased as the respiratory amplitude increased, and the widest dose profile along the y-axis occurred in VMAT-SBRT at the 18-mm respiratory amplitude (Table 3). However, for HT-SBRT, the width of the dose profile along the y-axis remained the same at different respiratory amplitudes. Figure 6 shows the measured dose profiles on the X, Y, and Z axes along with the TPS-calculated dose profiles at the maximum respiratory amplitude (18 mm) for the three SBRT techniques.

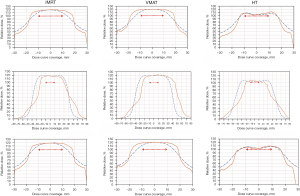

Figure 6 Calculated (blue line) and measured (orange line) dose profiles of three SBRT techniques: (A) X- (B) Y- and (C) Z-axis at the maximum respiratory amplitude (18 mm). IMRT, intensity-modulated radiation therapy; VMAT, volumetric modulated arc therapy; HT, helical tomotherapy SBRT, stereotactic body radiation therapy.

Discussion

In this study, we developed a tumor phantom, which, along with different measuring tools and a commercial thorax phantom, was used to investigate the effect of respiration-induced lung tumor displacement on dose delivery using different SBRT techniques, and three respiratory amplitudes were selected to simulate lung tumor motion. In other to represent the dosimetric properties of human lung tissue (average density 0.217 g/cm³), our homemade dose-measuring phantom was made of cork (density 0.27 g/cm³) instead of commonly used PMMA (density 1.18 g/cm³). Material density is a crucial factor for using phantom to measure lung radiation dose. To take into account tumor motion during beam delivery, 4DCT data were used for ITV delineation. The HT-SBRT plans showed better CI and HI than the IMRT-SBRT and VMAT-SBRT plans.

However, there were no statistically significant differences in CI and HI between the IMRT-SBRT and VMAT-SBRT plans. For CI, the HT-SBRT plans showed a trend toward a better CI as the respiratory amplitude decreased; however, the IMRT-SBRT and VMAT-SBRT plans showed the opposite trend with a better CI as the respiratory amplitude increased.

For the linac-based SBRT, the width of the multileaf collimator (MLC) could affect the spatial resolution of the dose distribution (15). In this study, a smaller respiratory amplitude indicates a smaller PTV; therefore, due to the MLC with 1-cm-wide leaves at the isocenter for the Synergy linac, our results showed that the CI slightly improved as the respiratory amplitude increased for the linac-based SBRT. For HI, the HI values remained almost the same for the IMRT-SBRT and VMAT-SBRT plans at different respiratory amplitudes, and there was no obvious trend in HI based on the respiratory amplitude with the HT-SBRT plans. The VMAT-SBRT plans with coplanar technique showed approximately 50% less BOT than the other plans. For the HT-SBRT plans, the BOT decreased as the respiratory amplitude increased. However, for the linac-based SBRT, our results showed a trend toward a shorter BOT as the respiratory amplitude increased. Again, we speculate that the plan complexity would increase for a smaller PTV due to the MLC with wider leaves, thus increasing the BOT.

The HT-SBRT plans showed a smaller difference between the prescribed dose and calculated dose compared with the VMAT- and IMRT-SBRT plans. To achieve the planning criteria of SBRT, linac-based SBRT with 1-cm-wide MLC leaves could generate SBRT plans with larger high-dose areas (115%), as shown in Figure 5. Ardu et al. showed that the HT TPS overestimated the measured dose for thorax lesions (16), we optimized the HT-SBRT plans with a minimum PTV dose equal to 103% PD in this study. Based on the point dose measurement results, we can still observe that the measured doses were slightly lower than the calculated doses at 18- and 10-mm respiratory amplitudes, and the linac-based SBRT plans showed that the measured doses were almost higher than the calculated doses. Therefore, physicians and physicists should be aware of the dose differences at the tumor center between calculated and measured doses for different SBRT techniques. For all three SBRT techniques at different respiratory amplitudes in this study, the point dose differences between the calculated and measured doses were all within ±3%.

For the dose profile measurement, previous studies reported that the largest respiration-induced lung tumor displacement found in the IS direction (17-19). Therefore, we can expect that the measured dose profiles along the y-axis would be wider than those along the other two axes at different respiratory amplitudes, which is consistent with the findings of this study (Table 3). The HT-SBRT plans showed that continuous couch movements during beam delivery along with the respiratory movement axis led to narrower y-axis dose profiles compared with the IMRT- and VMAT-SBRT plans at different respiratory amplitudes. Due to the coplanar VMAT-SBRT technique used in this study, which the beam direction was perpendicular to the IS direction, the VMAT-SBRT plans showed the widest y-axis dose profiles at different respiratory amplitudes. For the IMRT-SBRT plans with two noncoplanar beams, all y-axis dose profiles were smaller compared with those of the VMAT-SBRT plans. For the dose profile measurements at different respiratory amplitudes, all film results showed that an adequate treatment dose was obtained in the lung tumor (100% isodose curve encompassed the lung tumor).

Rao et al. investigated lung SBRT treatment plans generated based on 4D CT images and found a minimal effect of respiratory motion on the tumor dose and minimal dose heterogeneity for both IMRT- and VMAT-SBRT. Weyh et al. (20) analyzed the dosimetric accuracy of lung SBRT using three different techniques, i.e., RapidArc, HT, and IMRT; the results showed that the mean gamma passing rate was >97%, suggesting good agreement between the measured and calculated doses. These results are consistent with the findings of this study.

This study was designed to simulate regular respiratory motion with different respiratory amplitudes, which was the limitation of the study. Due to the limited range of movement and area of dose measurement of the thorax phantom, we only performed dose analysis in lung tumors with a respiratory amplitude ≤18 mm, and did not analyze the dose in the surrounding normal tissues or critical organs. In the future, we aim to investigate the effect of irregular respiratory motions with different respiratory amplitudes on dose delivery in tumors with different volumes for lung SBRT.

In summary, all SBRT plans generated based on 4DCT images ensured adequate treatment coverage, and the point dose differences between the calculated and measured doses were all within ±3% despite respiratory motion during beam delivery. The HT-SBRT plans showed better HI, CI, and agreement between the measured and calculated doses than the IMRT-SBRT and VMAT-SBRT plans at different respiratory amplitudes. For the linac-based SBRT, our results showed comparable HI and CI for both IMRT- and VMAT-SBR plans. Therefore, VMAT-SBRT with shorter BOT can be a feasible option for patients who cannot tolerate a long radiation treatment time.
