Rhabdomyosarcoma of the adult nasopharynx: a case report

Introduction

Rhabdomyosarcomas (RMS) are malignant cells that originate from immature myogenic satellite cells. Accounting for 2 to 5 percent of adult soft tissue sarcomas, 40% of RMS cases arise in adults and 35 to 40 percent of primary sites are in the head and neck (1). Embryonal and alveolar are two main histologic subtypes. The best policy of the RMS is complete excision with possible pre-or postoperative chemotherapy, and radiotherapy is usually for high risks patients.

However, the current overall treatment outcome of adult head and neck RMS is poor, and the 5-year survival rate is about 8% (2), and head and neck RMS are rarely amenable to wide local excision because of proximity to vital structures and cosmetic concerns and limit to initial diagnostic biopsy.

We reviewed an adult patient who had RMS of the nasopharynx with unknown histologic subtypes obtained a good outcome after curative treatment of radiotherapy and chemotherapy without surgery.

We presented the following case in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/tro-20-52).

Case presentation

A 62-year-old woman visited our hospital due to exacerbated left facial and cheek nonpainful mass for 2 weeks. There was no dyspnea, epistaxis, headache, dizziness, or any other symptoms. The patient does not have any social, family, or medical history. Physical examination showed multiple palpable elastic movable nonpainful masses in the left neck region, 4.5 and 2.3 cm at level Ib-II, 1.8 cm at the left supraclavicular area. Head and neck magnetic resonance imaging (MRI) scan revealed a 2.0 cm × 1.3 cm lesion at nasopharynx, multiple enlarged lymph nodes in the neck region, at left level Ia, left level Ib, left level II, left level III, and left parotid gland (Figure 1).

Figure 1 This is a transverse view of patient’s head and neck MRI at diagnosis. (A) T1W image (T1 weighted image) (B) the picture showed T2W image (T2 weighted image) (C) the picture showed T1W SPIR image (short tau inversion recovery phase), a 2.0 cm × 1.3 cm hypointense lesion over the nasopharynx

She received a biopsy of the nasopharynx on Oct. 11, 2012. The pathology report showed rhabdomyosarcoma. RMS is composed of nests of monotonous tumor cells with round nuclei and scant to moderate amount eosinophilic cytoplasm. The crush effect is noted. The immune profiles of tumor cells are CK (-), desmin (+), myoD-1(+), myogenin (+), and S-100(-) (Figure 2).

Figure 2 The pathology at diagnosis. (A) The specimen was stained with H&E, the sections reveal RMS cells in the soft tissue of the nasopharynx (400×). (B) The specimen was stained with desmin(+) (400×). (C) The specimen was stained with myogenin (focal +) (400×).

Under the diagnosis of RMS over left nasopharynx, cT2N1M0, intergroup rhabdomyosarcoma study group (IRSG) III, stage III, high-risk prognosis group. Five cycles of induction chemotherapy were delivered with doxorubicin (30 mg/m²) and Ifosfamide (50–60 mg/kg/day) from Oct. 29 2012 to Jan. 31, 2013. Clinical partial response was obtained. A significant decrease in lesion size of left nasopharynx was noted, with residual 1.3 cm × 0.7 cm over left nasopharynx and borderline size (0.9 cm) lymph nodes over level Ib of left neck. Then concurrent chemoradiation therapy (CCRT) with one cycle of doxorubicin (30 mg/m²) and Ifosfamide (50–60 mg/kg/day) was planned. Computed tomography (CT)-simulation with contrast enhancement in 3-mm-thickness of each slice was performed on Feb. 1st, 2013. The CT images were transferred to the planning system for target delineation. A 3-millimeter margin around the gross target volume (GTV) was included for clinical target volume (CTV). GTV included gross nasopharynx tumor and lymphadenopathies over left level Ib. CTV included nasopharynx area and bilateral level I-V. CTV + 0.3–0.5 cm was defined as PTV. The dose of 54 Gy in 2 Gy daily fractions to PTV was prescribed by using six megavoltages (MV) photon with intensity-modulated radiotherapy (IMRT) technique (Figure 3). Treatment was administered 5 days per week, for a total of 27 fractions. We followed CWS protocol (3). We prescribed an additional nasopharynx tumor boost 5.4 Gy in 1.8 Gy daily fractions to GTV. Radiotherapy was delivered from Feb 18, 2013, to April 5, 2013.

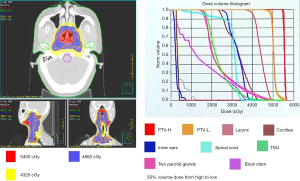

Figure 3 The dose-volume histogram (DVH), region of interest (ROI), and the representative isodose curve of the patient. The radiotherapy plan was delivered using intensity-modulated radiotherapy (IMRT) with a dose of 54 Gy in 27 fractions to nasopharyngeal tumor and regional lymph nodes. The red line of DVH on the right shows 54 Gy to GTV.

Concurrent chemotherapy was prescribed once on Mar 5, 2013 (the 12th day of radiotherapy). During treatment, the patient experienced grade 1 oral mucositis. The follow-up MRI was arranged every 3–6 months after treatment. A complete response was observed by MRI examination in Mar 2013.

However, left orbital tumor recurrence was noted on MRI in October 2013 CCRT was arranged with etoposide (100 mg/m²) and cisplatin (15–20 mg/m²), IMRT was delivered to the gross left orbital tumor (GTV only). PTV was defined as GTV plus 0.3–0.5 cm. The dose of 40 Gy/20 fractions was prescribed to PTV, followed by left orbital tumor boost 26 Gy/13 fractions to the residual tumor. Radiotherapy was delivered from Oct 9, 2013, to Nov 25, 2013. Complete response was observed by MRI in 2014. There was no evidence of tumor recurrence during the regular follow-up until Jun 2014.

Left parotid space tumor recurrence was observed by PET scan. CCRT was arranged with etoposide (100 mg/m²) and cisplatin (15–20 mg/m²), EBRT was delivered with IMRT, GTV included gross left parotid space tumor, CTV equal to GTV. CTV plus 0.3–0.5 cm was defined as PTV. The dose of 70 Gy/35 fractions to PTV. was delivered, from July 1, 2014, to Aug 18, 2014.

Complete response was observed once again by MRI in Oct 2014. The patient underwent oral chemotherapy with etoposide 50mg Q7D as maintenance therapy from Aug 2014 to Jun 2018. We had followed up with the patient for 96 months (Figure 4) since the first treatment. She remained free of disease till now.

Figure 4 Head and neck MRI on 96th month after treatment. (A) T1W image, (B) T2W image, (C) T1W SPIR image. No significant evidence of abnormal enlargement or abnormal enhancing pattern except left maxillary sinusitis.

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient

Discussion

RMS occurred predominantly in children, which arose from myogenic precursor cells. Most cases were less than ten years old. RMS was very uncommon in adults, and highly malignant, accounting for <1% of all malignancies.

It differed in adults in terms of presentations, histological distribution, treatment, and outcomes from the pediatric population (4). Adults have a poorer prognosis. The survival varies considerably depending on histological subtypes (5). Head and neck (35%), pelvic region, and extremities were common sites of RMS occurrence.

Many biomarkers were developed to assist in diagnosing RMS, including myoglobin, vimentin, troponin, actin, myoglobulin, etc. (6).

Yuhong et al. (7) proved that myogenic regulatory factors (MRFs) including MyoD1, myogenin, Myf5, and MRF4 had positive results in RMS, but negative in other soft tissue tumors. They also suggested that MyoD-1 could be the most efficient biomarker. Based on Immunohistochemistry, our research showed that the expression of desmin, MyoD-1, and myogenin were positive.

Because the crushing effect is noted, cells arranged in sheets and large nests or fibrovascular septae that are lined with densely packed ovoid to round tumor cells and separated by pseudo-alveolar spaces cannot be seen, therefore, lead to an unknown subtype due to the limitation of the biopsy specimen.

Traditionally, the treatment of RMS has been selected according to a risk-based algorithm that combines histologic classification with presurgical stage and postsurgical clinical group.

The best policy of the RMS is complete excision with possible pre-or postoperative chemotherapy. Radiotherapy is usually indicated for high risks patients. However, head and neck RMS are rarely amenable to wide local excision because of proximity to vital structures and cosmetic concerns.

VAC (vincristine, dactinomycin, and cyclophosphamide) are the most commonly used chemotherapeutic agents (8-11). Although in some sequential IRSG and COG trials, the addition of many individually active agents (e.g., doxorubicin, cisplatin, etoposide, ifosfamide, topotecan, and melphalan) did not improve outcomes compared with VAC in any subgroup in children (10).

The total dose of radiotherapy is generally 45–60 Gy, and the course of treatment is 5–6 weeks. It was reported that when treating localized parameningeal RMS of children, the dose of >47.5 Gy can increase the local control rate of RMS, especially when tumor diameter is > or =5 cm (12). A case report showed a good outcome with 55 Gy of radiotherapy to lymph nodes, after chemotherapy and human p53 adenovirus injection in an adult patient with nasal embryonic rhabdomyosarcoma stage III (13).

RT should be administered to the primary site, and if there were an intracranial extension, the adjacent meninges should be included. Because of lack of exit dose, proton beam RT can provide superior sparing of normal tissue and a significant reduction in late effects (14).

If there are tumor cells in the cerebrospinal fluid, suggesting diffuse meningeal disease, craniospinal RT is indicated. If there are multiple parenchymal brain metastases and there are no tumor cells in the cerebrospinal fluid, whole-brain RT should be administered.

In our case, an adult RMS over left nasopharynx, cT2N1M0, intergroup rhabdomyosarcoma study group (IRSG) III, stage III, high risk, poor prognosis group, with unknown subtype due to the limitation of the biopsy specimen. 59.4 Gy in 30 fractions was prescribed to nasopharynx with one course of doxorubicin (30 mg/m²) and Ifosfamide (50–60 mg/kg/day) during the first course of treatment. 66 Gy in 33 fractions was prescribed to left orbit for the first recurrence, and 70 Gy in 35 fractions was prescribed to left parotid space for the second recurrence. with concurrent etoposide and cisplatin for twice recurrence of the disease. All of the treatment finally led to a complete response.

During the treatment courses, grade 1 oral mucositis was noted during the first course of radiotherapy, and grade 1 dermatitis was noted during the third course of radiotherapy. The patient tolerated the treatment well during all treatment courses.

Pathological staging can predict the outcome based on the Intergroup Rhabdomyosarcoma Study Group (IRSG) (15), and the anatomic site was also a significant prognostic indicator (16). The adult RMS five-year overall survival rates are low, ranging from 40% to 54% (17). Five-year survival rates of adult head and neck RMS is much lower, which is about 8%. The unfavorable primary site, unfavorable histology, and regional and distant spread were more likely to occur in adults and led to a poorer prognosis.

We presented this case focusing on the good outcome with aggressive chemoradiation and maintenance therapy of repeated recurrence of adult nasopharyngeal RMS with limited toxicities.
