Chemo-radiotherapy for olfactory neuroblastoma: cases report and literature review

Introduction

Olfactory neuroblastoma was first described by Berger and Richard in 1924. It is also named as esthesioneuroblastoma (1). It has been characterized as a rare malignant neuroectodermal neoplasm of the sinonasal cavity, which typically occurs in superior nasal cavity medial to the middle turbinate and represents about 3% of all sinonasal malignancies (2). The precise location and histogenesis of olfactory neuroblastoma are not clearly known. The most accepted site of origin is the basal neural cells of the olfactory mucosae and then arises in the superior portion of the nasal vault (3). The clinical behavior of olfactory neuroblastoma ranges widely from relatively indolent to both locally aggressive and metastatic. Most of the symptoms are related to the anatomic structures affected by mass effect or local invasion (4).

It is challenging for characterization and treatment due to its rare incidence. There are three modalities used to treat olfactory neuroblastoma: surgery, external beam radiation, and chemotherapy. The optimal treatment regimens are still under investigation. Often, a combination of these three modalities is used, namely surgical resection with postoperative irradiation, for all but the smallest tumors (5,6). Chemotherapy has a role for more advanced cases, but the utility of chemotherapeutic agents is not well-defined. For unresectable local disease, chemo-radiation is an approach but lack of strong evidence for the combination of radiation dose and chemotherapy regimen.

Case presentation

Two patients were initially diagnosed as stage IVA olfactory neuroblastoma via tumor biopsy and staged properly by serial images evaluation including head and neck magnetic resonance imaging (MRI), chest X-ray, abdominal sonography and bone scan. Patient was treated with chemo-radiotherapy after diagnosis. After completion of chemo-radiotherapy, they were regularly followed up at out-patient clinic. The treatment toxicity and complication were evaluated by physical examination and history-taking. The tumor response was evaluated by head and neck MRI.

Case 1 was a 48-year-old female patient, cT4aN2cM0, stage IVA, treated with radiotherapy 70 Gy in 35 fractions (2 Gy per fraction) to clinical target volume of high risk area (CTV-H) (right nasal mass + right ethmoid sinus mass + subfrontal mass + bilateral upper 2/3 neck lymphadenopathy), 59.5 Gy in 35 fractions to clinical target volume of low risk area (CTV-L) (CTV-H with 0.3–1 cm margin added + sphenoid sinus + ethmoid sinus + retropharyngeal lymph nodes + bilateral neck lymph nodes), and concurrent intravenous Cisplatin 30 mg/m² for one course. The image comparison between pre- and post- treatment was displayed on Figure 1. The upper row of images was taken on 8th February in 2010, 3 weeks after completion of treatment. The MRI showed a large lobulated soft tissue mass lesion, about 3.1 cm ×4.2 cm ×4.9 cm in size, which was involving right middle to superior nasal turbinates and walls, nasal septum. It also invaded into ethmoid sinuses, cribriform plate and olfactory groove. The tumor showed partial remission after serial image follow-up. The lowest row of images was taken on 11th September in 2018. The tumor was measured 2.4 cm ×3.46 cm ×0.94 cm in size, which is in the anterior cranial fossa base in the epidural olfactory groove and with destruction of cribriform plate and extension through the perpendibular plate ethmoid bone. The follow-up MRI scan of the head and neck showed no interval change since 12th May in 2016 regarding the size of the residual tumor in the olfactory groove in the intracranial epidural space, as well as in the cribriform and perpendicular plates of the ethmoid bone. She was recurrence-free for 9 years.

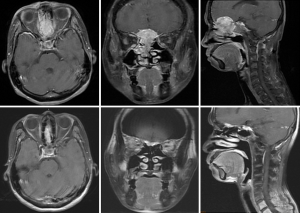

Figure 1 The upper row of images was taken on 8th February in 2010, 3 weeks after completion of treatment. There was still a large lobulated soft tissue mass lesion, 3.1 cm ×4.2 cm ×4.9 cm in size, involving right middle to superior nasal turbinates and walls, nasal septum, with invasion to ethmoid sinuses, cribriform plate and olfactory groove. The tumor showed partial remission from serial image follow-up. The lower row of images was taken on 11th September in 2018. The tumor was measured 2.4 cm ×3.46 cm ×0.94 cm in size, which was in the anterior cranial fossa base at the epidural olfactory groove and with destruction of cribriform plate and extension through the perpendibular plate of ethmoid bone. The follow-up MR scan of the head and neck showed no interval change since 12th May in 2016, regarding the size of the residual tumor in the olfactory groove in the intracranial epidural space, as well as in the cribriform and perpendicular plate of the ethmoid bone.

Case 2 was a 38-year-old male patient, cT4N1M0, stage IVA, treated by induction chemotherapy with intravenous Etoposide + Carboplatin for 4 courses from 21st March to 30th May in 2011 and followed by radiotherapy 70 Gy in 35 fractions (2 Gy per fraction) to CTV-H (ethmoid sinus mass & bilateral level IIa lymphadenopathy) and 59.5 Gy in 35 fractions to CTV-L (CTV-H with margin added + frontal sinus + nasopharynx + nasal cavity + bilateral retropharyngeal lymph nodes + level II-IV lymph nodes) from 21st June to 5th August in 2011. Contouring of CTV-H and CTV-L was shown on Figure 2. The image comparison between pre- and post- treatment was displayed on Figure 3. The upper row of MRI images was taken on 18th Feb in 2011. There was an irregular mass (4 cm ×4.7 cm ×5 cm in size) within the ethmoid sinuses with bone destruction and extending into the left frontal sinus. The lower row of MRI images was taken on 2nd April in 2016. No evident tumor was identified in the nasal cavity. Comparison between these two series of images, the tumor showed complete remission. From the latest follow-up date on 25th February in 2019, he was disease-free without recurrence for 8 years.

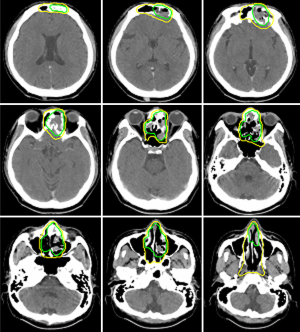

Figure 2 Contouring of case 2, CTV-H 70 Gy in 35 fractions (2 Gy per fraction) to ethmoid mass & bilateral level IIa lymphadenopathy; CTV-L 59.5 Gy in 35 fractions (1.7 Gy per fraction) to CTV-H with margin-added. Green line represents CTV-H and yellow line represents CTV-L. CTV-H, clinical target volume of low risk area; CTV-L, clinical target volume of low risk area.

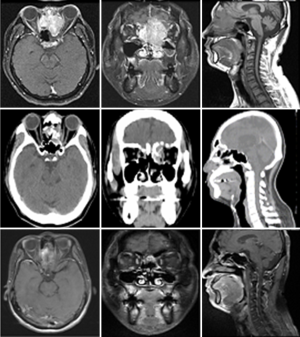

Figure 3 The upper row of images was taken on 18th, Feb in 2011, before induction chemotherapy. There was an irregular mass (4 cm ×4.7 cm ×5 cm in size) within the ethmoid sinuses with bone destruction and extending into the left frontal sinus. The middle row of images was CT simulation taken on 13th June in 2011. The lower row of images was taken on 2nd April in 2016. No recurrent tumor is identified in the nasal cavity. The disease showed complete remission.

These two cases demonstrated that definitive chemo-radiotherapy would be an alternative treatment option for olfactory neuroblastoma. They received definitive chemo-radiotherapy without any acute or chronic toxicity. Regular head and neck MRI were performed for follow-up. The tumor was well controlled without recurrence.

Discussion

The optimal treatment strategy for olfactory neuroblastoma is difficult to determine, because of its rarity and anatomic location. Single-modality treatment, usually surgical resection, is suggested for small local tumor without metastasis (5,6). Multimodality combination is usually recommended for advanced stage cases. The treatment content has evolved over the years due to the advanced in radiation and surgery techniques. Surgical resection accompanied with post-operative radiotherapy showed well outcomes of overall survival and improving local control (6-8). However, it is still controversial to the use of chemotherapy alone, regarding the optimal choices of drug or indication.

Radiation plays an important role in treating olfactory neuroblastoma as the primary modality of treatment, as the preoperative setting or as the postoperative setting (9,10). Several studies have shown that operation with irradiation is superior to definitive radiotherapy (4,11). Radiation alone or chemo-radiotherapy is suggested when surgical is not an option due to medical contraindication or metastatic tumor status. Now intensity modulated radiation therapy (IMRT) is able to provide good sparing of optic nerve, brain and other normal structure. Total dose of 65–70 Gy under 1.8–2 Gy per fractions is most suggested (12).

The evidence supporting chemotherapy as the primary modality of treatment to olfactory neuroblastoma is limited. The role of chemotherapy is not clearly identified in the literature. It is generally applied in the setting of induction chemotherapy or concurrent chemo-radiation therapy. Cisplatin + Etoposide is the most accepted regimen for treating olfactory neuroblastoma (5,13,14). Chao et al. show good response to neoadjuvant chemotherapy with 4 cycles of Cyclophosphamide/Vincristine or Cisplatin/Etoposide (15). For patient with distant metastasis, systemic treatment is warranted. However, there is still no standard chemotherapy regimen for neither palliative nor curative chemotherapy.

Chemo-radiation is an approach for advanced tumor status. It may provide down-staging in pre-operative setting and improve the resectability for locally advanced olfactory neuroblastoma. Definitive chemo-radiation for olfactory neuroblastoma is rarely reported. In our study, we demonstrated definitive chemo-radiotherapy would be an alternative treatment option for olfactory neuroblastoma. The tumor was well controlled without recurrence for at least 8 years.
